Bodenbender is a premium sales partner of RIDGID Germany and distributes all RIDGID products.
We specialize in video inspection systems and high-speed pipe cleaning solutions.
Find the right RIDGID tool for your application on our website or contact us directly.

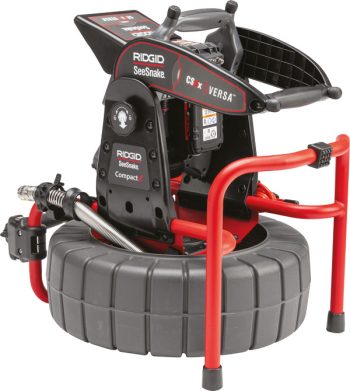

SeeSnake® Compact 2 camera system
Small space requirement, high performance
High performance in a compact, robust design. The Compact 2 camera system is particularly suitable for branches and branch lines (40 – 150 mm diameter).
Designed for the CS6x VERSA monitor
Place the CS6x VERSA monitor with digital recording in the Compact 2 docking system and you’re ready for a quick setup. Simply switch on the system, tilt the monitor to the desired viewing angle and start recording high-quality images and videos.
Facts and figures:
- Incl. 30 m (100′) push cable
- Incl. 25 mm (1″) self-leveling camera head
- Built-in transmitter and meter counter
Facts and figures:
- 5.7″ color LCD display
- Connection via Bluetooth or
Wi-Fi - Storage on USB medium
Technical data
Leitungskapazität | 40 mm bis 150 mm (1,5″ bis 6″) |
Schubkabellänge | 30 m (100′) |
Schubkabeldurchmesser | 6,7 mm (0,26″) |
Schubkabelkern | 3 mm (0,12″) Fiberglas |
Schubkabelbiegung – minimal Radius | 64 mm (2,5″) |
Gewicht (ohne Akkus) | 7,7 kg (17 lbs.) |
Größe | Länge 63,5 cm (25″), Breite 35,6 cm (14″), Höhe 43,2 cm (17″) |
Kamerakopf | 25 mm (1″), selbstnivellierend |
Lichtquelle | 6 LEDs |
Sender | 512 Hz |
Betriebstemperatur | -10 °C bis 50 °C (14 °F bis 122 °F) |
Schutzklasse ohne Monitor | IPx6 |

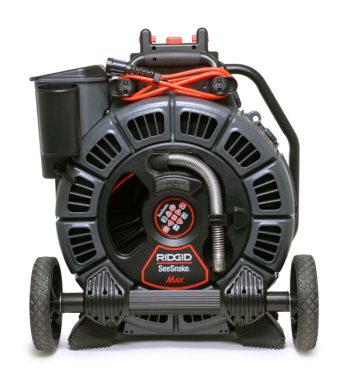

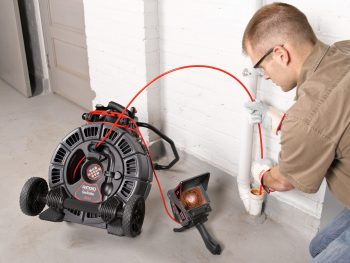

SeeSnake® MAX rM200
The rM200 camera system combines mobility with the versatility of the D2 reel series, which has different stiffnesses of push cable and spring to cope with any type of inspection.
Change option
- The rM200 camera system is equipped with the drum of your choice ->
- The D2 drum series currently consists of the D2A and D2B drums.
Each drum is available separately. - Quick and easy replacement of the drums – choose both and stay flexible while working.
Sliding capability
The reels offer different push cable lengths, diameters, stiffnesses and springs.
Mobility
Easy transportation using the wheels or the carrying handle (the monitors for digital recording can also be connected and attached thanks to the docking system, making them easy to transport, operate and store together with the complete camera system).
Technical data
rM200A (D2A drum)
Rohrkapazität – bei Verwendung einer Führungskugel von 125 mm (5″) | 40 mm bis 200 mm (1,5″ bis 8″) |
Schubkabellänge | 60 m (200′) |
Durchmesser | 76 mm (0,3″) |
Fiberglaskerndurchmesser | 36 mm (0,14″) |
Biegeradius (Minimum) | 71 mm (2,8″) |
Systemgewicht | 16,5 kg (36,3 lbs.) |
Trommelgewicht | 7,4 kg (16,4 lbs.) |
Trommeldurchmesser | 61 cm (24″) |
Kamerakopf | Selbstnivellierend |
Länge | 25 mm (1″) |
Durchmesser | 25 mm (1″) |
Lichtquelle | 6 LEDs |
Senderfrequenz | 512 Hz |
Auflösung | NTSC 656 x 492 Pixel; PAL 768 x 576 Pixel |
Federeinheittyp | Einfach Länge 30,8 cm (12″) |
rM200B (D2B drum)
Rohrkapazität – bei Verwendung einer Rohrführung von 12,5 cm (5″) | 50 mm bis 200 mm (2″ bis 8″) |
Schubkabellänge | 50 m (165′) |
Durchmesser | 90 mm (0,35″) |
Fiberglaskerndurchmesser | 45 mm (0,18″) |
Biegeradius (Minimum) | 90 mm (3,5″) |
Systemgewicht | 17,8 kg (39,2 lbs.) |
Trommelgewicht | 8,7 kg (19,2 lbs.) |
Trommeldurchmesser | 61 cm (24″) |
Kamerakopf | Selbstnivellierend |
Länge | 25 mm (1″) |
Durchmesser | 25 mm (1″) |
Lichtquelle | 6 LEDs |
Senderfrequenz | 512 Hz |
Auflösung | NTSC 656 x 492 Pixel; PAL 768 x 576 Pixel |
Federeinheittyp | Dual geschachtelt Länge 43,3 cm (17″) |

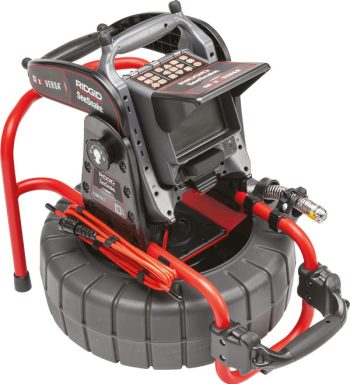

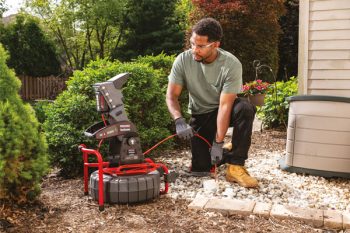

SeeSnake® COMPACT C40
The SeeSnake COMPACT C40 offers a similar performance spectrum to the SeeSnake Compact2. This inspection system has been expanded to include TruSense technology – for even clearer images with a clear depth view and displayed camera angle from inside the pipe.
Compatible with all SeeSnake CSx monitors.
Facts and figures
- Incl. 40 m (131′) push cable
- Incl. 25 mm (1″) self-leveling camera head
- Built-in transmitter and meter counter
- Camera technology with TruSense technology offers HDR and TiltSense
Technical data
Leitungskapazität | 40 mm bis 150 mm (1,5″ bis 6″) |
Schubkabellänge | 40 m (131′) |
Schubkabeldurchmesser | 6,7 mm (0,26″) |
Schubkabelkern | 3 mm (0,12″) Fiberglas |
Schubkabelbiegung – minimal Radius | 64 mm (2,5″) |
Gewicht (ohne Akkus) | 7,8 kg (17,2 lbs.) |
Kamerakopf | 25 mm (1″), selbstnivellierend |
Auflösung | 656 x 492 (NTSC), 768 X 576 (PAL) |
Lichtquelle | 6 LEDs |
Sender | 512 Hz (FleXmitter) |
Schutzklasse ohne Monitor | IPx6 |

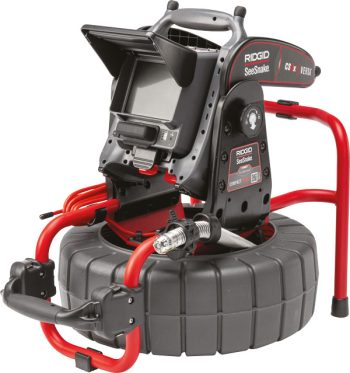

SeeSnake® COMPACT M40
The compact M40 video inspection unit with TruSense technology – and moderately stiff push cable for an optimal mix of navigability and stability. Ideal for main and branch lines (40-200 mm / 1.5-8″) with fewer bends.
Compatible with all SeeSnake CSx monitors.
Facts and figures
- Incl. 40 m (131′) push cable
- Incl. 25 mm (1″) self-leveling camera head
- Built-in transmitter and meter counter
- Camera technology with TruSense technology offers HDR and TiltSense
Technical data
Schubkabellänge | 40 m (131′) |
Schubkabeldurchmesser | 9,1 mm (0,36″) |
Fiberglaskerndurchmesser | 3,5 mm (0,14″) |
Biegeradius (Minimum) | 76 mm (3″) |
Systemgewicht | 12 kg (26,5 lbs.) |
Trommelgewicht | 9,8 kg (22 lbs.) |
Trommeldurchmesser | 61 cm (24″) |
Kamerakopf | Selbstnivellierend |
Länge | 25 mm (1″) |
Durchmesser | 25 mm (1″) |
Lichtquelle | Hochintensive LED |
Senderfrequenz | 512 Hz, FleXmitter |
IP Klasse ohne Monitor | IPx6 |
SeeSnake® microReel
The microReel™ series offers a small size and high maneuverability for inspections with small diameters and tight bends (also 90° possible). Available in two different reels.
Compatible with all SeeSnake monitors and the micro CA-350 handheld inspection camera.
Meter counter optional (for L100C)
Manageability
The microReel series is only half the size of comparable systems and is therefore easy to stow even in small vehicles and transport to the site of use.
Longevity
The camera head and spring unit are made of hardened stainless steel to increase durability.
Flexibility
Interchangeable drums for even more flexibility in your applications (L 100 series, D65S & N85S)
Technical data
Leitungskapazität | 40 mm bis 110 / 125 mm (1,5″ bis 4 / 5″) |
Schubkabellänge | 30 m (100′) |
Schubkabeldurchmesser | 6,7 mm (0,265″) |
Gewicht (ohne Akkus) | 4,7 / 5,3 kg (10,3 / 11,6 lbs.) |
Kamerakopf | 25 mm (1″), selbstnivellierend |
Lichtquelle | 6 LEDs |
Wasserdicht (ohne Monitor) | 81 m (266′) |
Betriebstemperatur | 0 °C bis 46 °C (32 °F bis 115 °F) |

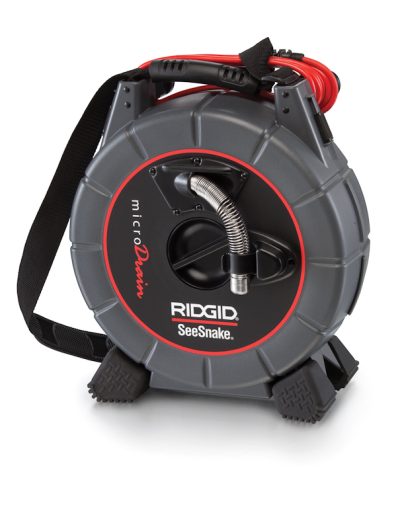

SeeSnake® microDrain™
microDrain™ video inspection system is a compact and flexible system with excellent maneuverability in small diameter pipes and tight bends.
Ideal for toilet odor traps or P-traps.
Compatible with most SeeSnake monitors and the micro CA-350 handheld inspection camera.
Meter counter not available.
Manageability
The microDrain series is only half the size of comparable systems and is therefore easy to stow even in small vehicles and transport to the site of use.
Longevity
The camera head and spring unit are made of hardened stainless steel to increase durability.
Area of application
The nanoReel standard reel allows the inspection of pipes with particularly small diameters (25-50 mm / 1-2″). In pipe systems from 30 mm, 90° bends can be easily overcome.
Technical data
Kameradurchmesser | 15,5 mm (0,61″) |
Kabellänge | 25 m (85′) |
Kabeldurchmesser | 6,3 mm (0,25″) |
Leitungskapazität | 32 bis 75 mm oder 100 mm (1¼” bis 3 / 4″) |
Gewicht | 3,9 kg (8,6 lbs.) oder 4,4 kg (9,8 lbs.). |
Größe | Länge 33,7 cm (13,25″), Breite 16,8 cm (6,6″), Höhe 36,1 cm (14,2″). |
Auflösung | 656 x 492 NTSC |
Kugelführung | Zwei im Lieferumfang enthalten |
Sender | Standard bei microDrain mit 20 m (65″), 512 Hz |
